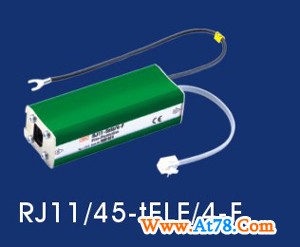

供应OBO电话信号防雷器RJ45S-TELE/4-F

RJ型双绞线信号保护器

规格	Umin	Umax	应用	保护脚	最大容通电流	动作时间	电容
RJ11S-V24T/4-F	12V	18V	RS-232(V.24)O.H. Token Ring	Pin2,3,4,5	340A	<10ns	<40pF
RJ11S-V11EI/4-F	6V	7.5V	RS-422/485(V.11) Ethermet 10 base T	Pin2,3,4,5	750A	<10ns	<40pF
RJ11S-Tele/2-F	110V	240V	Moden/fax Telecommunication	Pin3,4	250A	<10ns	<40pF
RJ11S-Tele/4-F	110V	240V	Moden/fax Telecommunication	Pin2,3,4,5	1.5kA	<10ns	<o.5dB
RJ11S-Tele/6-F	110V	240V	Moden/fax Telecommunication	Pin1-6	250A	<10ns	<40pF
RJ45S-V24T/4-F	12V	18V	RS-232(V.24)O.H. Token Ring	Pin3,4,5,6	340A	<10ns	<40pF
RJ45S-V24T/8-F	12V	18V	RS-232(V.24)O.H. Token Ring	Pin1-8	340A	<10ns	<40pF
RJ45S-E100/4-F	6V	7.5V	Ethermet 10/100 Base T (twisted pair)	Pin1,2,3,6	750A	<10ns	<40pF
RJ45S-V11I/4-F	6V	7.5V	RS-422/485(V.11)	Pin3,4,5,6	750A	<10ns	<40pF
RJ45S-V11EI/8-F	6V	7.5V	RS-422/485(V.11) Ethermet 10 base T	Pin1-8	750A	<10ns	<40pF
RJ45S-Tele/4-F	110V	240V	Moden/fax Telecommunication	Pin3,4,5,6	1.5kA	<10ns	<o.5dB
RJ45S-Tele/8-F	110V	240V	Moden/fax Telecommunication	Pin1-8	250A	<10ns	<40pF
