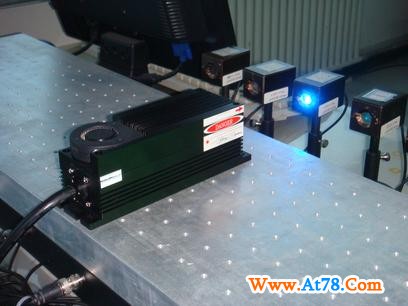

进店逛逛457nm蓝光固体激光器
（型号：MW-BL-457/400~1000mW）
产品特点：
l 功率大小可调节，操作简便
l 自带延时、过热、限流保护
l 可分别显示电流、热阻值
l 宽范围电压输入(100-265V)
l 可外接高速调制
l 适用于荧光激发、拉曼光谱、光谱分析等
性能参数：
|
波长Wavelength (nm)
|
457±1
|
||
|
输出功率 Output Power (mW)
|
400~1000
|
||
|
工作方式 Working Mode
|
CW
|
||
|
光斑模式Beam Mode
|
横模 Transverse
|
Near TEM00
|
|
|
纵模 Longitude
|
Multi-longitude
|
||
|
线宽Spectral Linewidth (nm)
|
<0.1
|
||
|
偏振方式 Polarization
|
Line polarization
|
||
|
偏振比Polarization Ratio
|
>100:1
|
||
|
光束质量Beam Quality (M2 factor)
|
<2.0
|
||
|
光束发散角Beam Divergence (full angle, mrad)
|
1.5±0.2
|
||
|
光束指向稳定性Pointing stability (mrad)
|
<0.05
|
||
|
光束直径Beam Diameter at Aperture (mm)
|
2.0~3.0
|
||
|
光束椭圆度 Beam Roundness
|
>90%
|
||
|
功率稳定性Power Stability (RMS, over 8 hours)
|
<3%,<5%
|
||
|
振幅稳定性Noise of Amplitude (P-P)/噪声值
|
<3%,<5%
|
||
|
出光孔高度 Aperture Position (mm)
|
20
|
||
|
激光头 Laser Head
|
尺寸 Dimensions (L×W×H, mm)
|
180 x 62 x 63
|
|
|
重量 Net Weight (kg)
|
1.0
|
||
|
驱动电源
Power Driver
|
尺寸 Dimensions (L×W×H, mm)
|
159 x 144 x 83
|
|
|
重量 Net Weight (kg)
|
1.2
|
||
|
电源型号 Integrated Driver Model
|
VD-IIIA
|
||
|
电源调制External Modulation
|
5V TTL / 5V Analogue
|
||
|
调制速率Modulating Repetition
|
10KHz TTL / 5KHz Analogue
|
||
|
制冷方式Cooling System
|
TEC
|
||
|
预热时间Warm-up Time (minutes)
|
<15
|
||
|
工作温度Operation Temperature (℃)
|
10~35
|
||
|
使用寿命Expected Lifetime (hours)
|
>10000
|
||
|
保修期Warranty Time
|
1年
|
||
